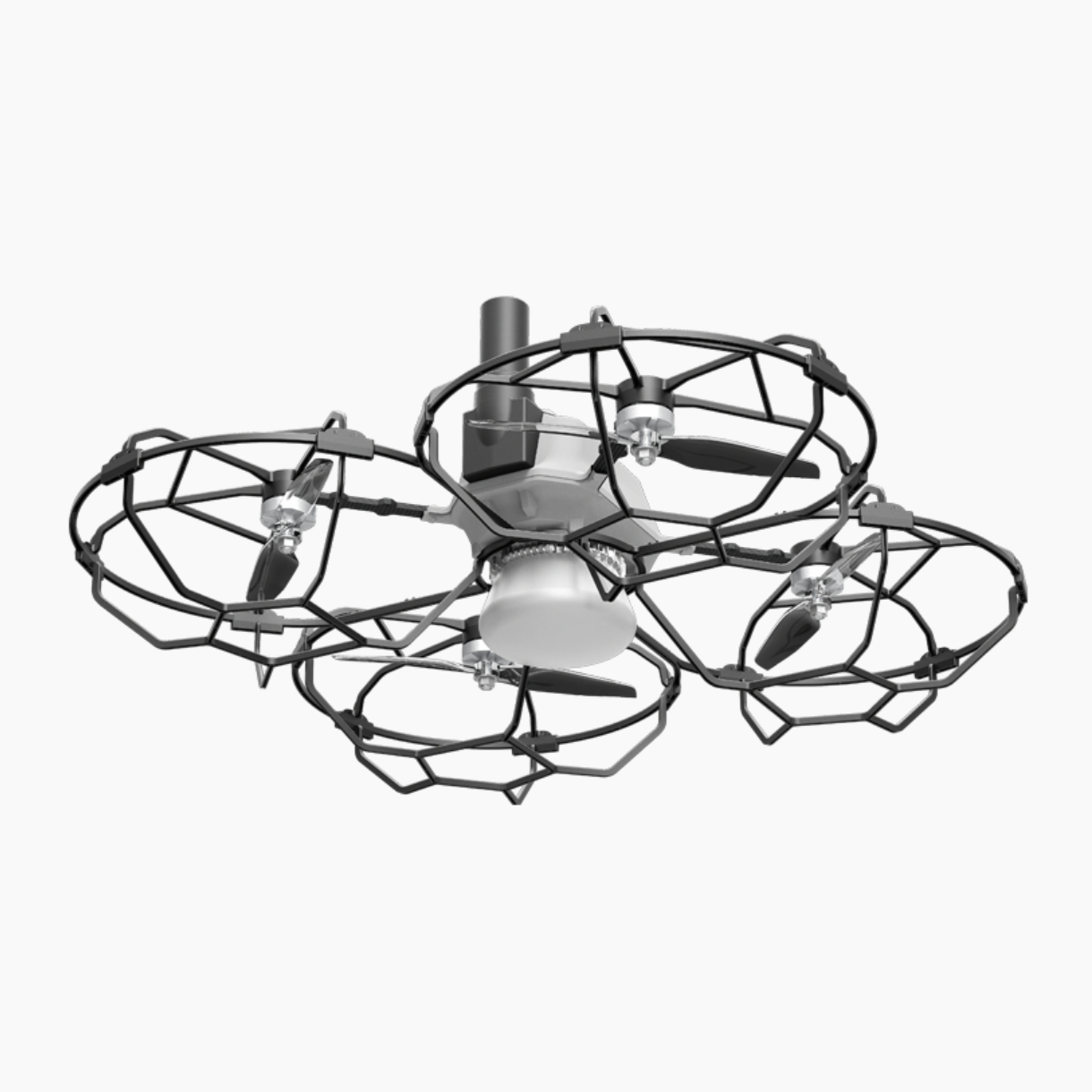

LS-1 light show drone

LS-1 light show drone

The LS-1 light show drone features a carbon fiber and aluminum alloy composite structure and integrates the FC-2M dual-redundant, highly reliable flight control system, a high-precision multi-frequency RTK module, dual-redundant data transmission modules, a high-performance powertrain, and a high-brightness, full-color lighting module. Designed specifically for formation light shows, it offers a compact, long-endurance, highly reliable, and safe quadrotor unmanned aerial platform.



  • رقم الصنف :

    LS1001
  • النظام (موك) :

    200
  • دفع :

    T/T
  • أصل المنتج :

    CHINA
  • لون :

    WHITE
  • ميناء الشحن :

    SHANGHAI
  • فترة إنتاج :

    30DAYS

Introduction

The LS-1 light show drone features a carbon fiber and aluminum alloy composite structure and integrates the FC-2M dual-redundant, highly reliable flight control system, a high-precision multi-frequency RTK module, dual-redundant data transmission modules, a high-performance powertrain, and a high-brightness, full-color lighting module. Designed specifically for formation light shows, it offers a compact, long-endurance, highly reliable, and safe quadrotor unmanned aerial platform.

Key Features

  • Easy to use, transport, and deploy quickly;
  • Highly expandable, allowing for a variety of accessories such as sky lanterns, smoke sticks, and fireworks;
  • Highly safe, with fully enclosed propellers for enhanced flight safety;
  • Highly reliable, with an integrated FC-2M dual-redundant, highly reliable flight control system, including two redundant gyroscopes, accelerometers, and magnetic compasses;
  • High positioning accuracy, with an integrated multi-frequency, high-precision RTK module, achieving real-time positioning accuracy of up to 1cm + 1ppm CEP;
  • High performance flight speed, reaching a maximum of 10m/s;
  • Highly adaptable to environmental conditions, capable of flying in winds up to 10m/s and operating in ambient temperatures ranging from -20°C to 60°C;
  • Long performance flight time, with a maximum performance flight time of 14 minutes;
  • Strong anti-interference capabilities, with dual redundant data transmission links and dual-band operation. If one data transmission link is interfered with, the other remains operational, with a maximum communication range of 3km.
  • Highly automated, it supports fully automatic status checks and uses lights to indicate drone status. It also supports remotely waking and sleeping all drones via ground station software.
  • High-quality lighting effects, including 24W high-power, full-color LEDs

Technical Specification

Dimensions

416x416x181mm

Diagonal Wheelbase

283mm

Standard Takeoff Weight

657g

GNSS

184-channelGPS L1C/A L2CGLO L1OF L2OFGAL E1B/C E5b, BDS B1I B2I, QZSS L1C/A L1S L2C, SBAS L1C/A

Positioning Accuary

1 cm + 1 ppm CEP

Max Ascent Speed

6m/s

Max Descent Speed

6m/s

Max Speed

10m/s

Max Takeoff Altitude

4000m

Max Wind Resistance

10m/s

Max Flight Time

20±1min

Max Perform Time

14min

Max Power of Light Module

24W

Operating Temperature

-20~60

Operating Humidity

85%RH (Non-condensing)

Storage Temperature

0~40

Storage Humidity

65±20%RH

Communication

DDT (digital data transmission)+WiFi

Max Transmitting Distance

3km



Battery Specification

Type

LiPo 4S1P

Capacity

2250mAh

Voltage

15.4V

Energy

34.65Wh

Weight

188g

Charging Time

1~1.5hours

Charging Temperature

0~45

Storage Temperature

3 months: -10~45

Storage Humidity

3 months: 23±5

FAQs

1. What is the approximate service life of a drone?

5-10 years, mainly depends on the user's maintenance of the drone.

2. How many flight hours?

Mainly, the battery needs to be replaced with a new one after 400-500 cycles of charging.

3. Which parts need to be replaced regularly?

Propellers, landing gear, water pumps, centrifugal nozzles, we recommend equipping each drone with 2 pairs.

4. What services does the drone need?

Clean the drone frequently and pay attention to whether the screws are loose and need to be replaced.

5. How long is the interval?

Mainly depends on the user's use. You should observe the condition of the drone frequently.



Why choose BEONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
