The BEONDT PECSCAN 16 is an advanced, array-based Pulsed Eddy Current (PEC) scanning system engineered for high-efficiency detection and mapping of corrosion under insulation (CUI) on in-service assets, without the need for costly insulation removal. The BEONDT PECSCAN 16 transforms CUI inspection from a slow, point-based method into a fast, comprehensive screening process, enabling predictive maintenance and enhancing asset integrity management for industrial operators.
رقم الصنف :
PECSCAN16النظام (موك) :
1دفع :
T/Tأصل المنتج :
CHINAلون :
BLACKميناء الشحن :
SAHNGHAIProduct Description
The PECSCAN 16 Array Pulsed Eddy Current Corrosion Scanning System is designed to detect corrosion under insulation without the need for insulation removal. It is suitable for in-service pipeline inspection.
This pulsed eddy current scanning system enables diagnostics without surface pretreatment or insulation dismantling. The insulation layer can be any non-conductive coating, such as polyurethane, mineral wool, plastic, paint, or air. The insulation cladding material can be aluminum or galvanized steel.
The system measures the average metal thickness beneath the sensor array. It is suitable for detecting general corrosion and pitting corrosion on both the external and internal surfaces of pipelines.

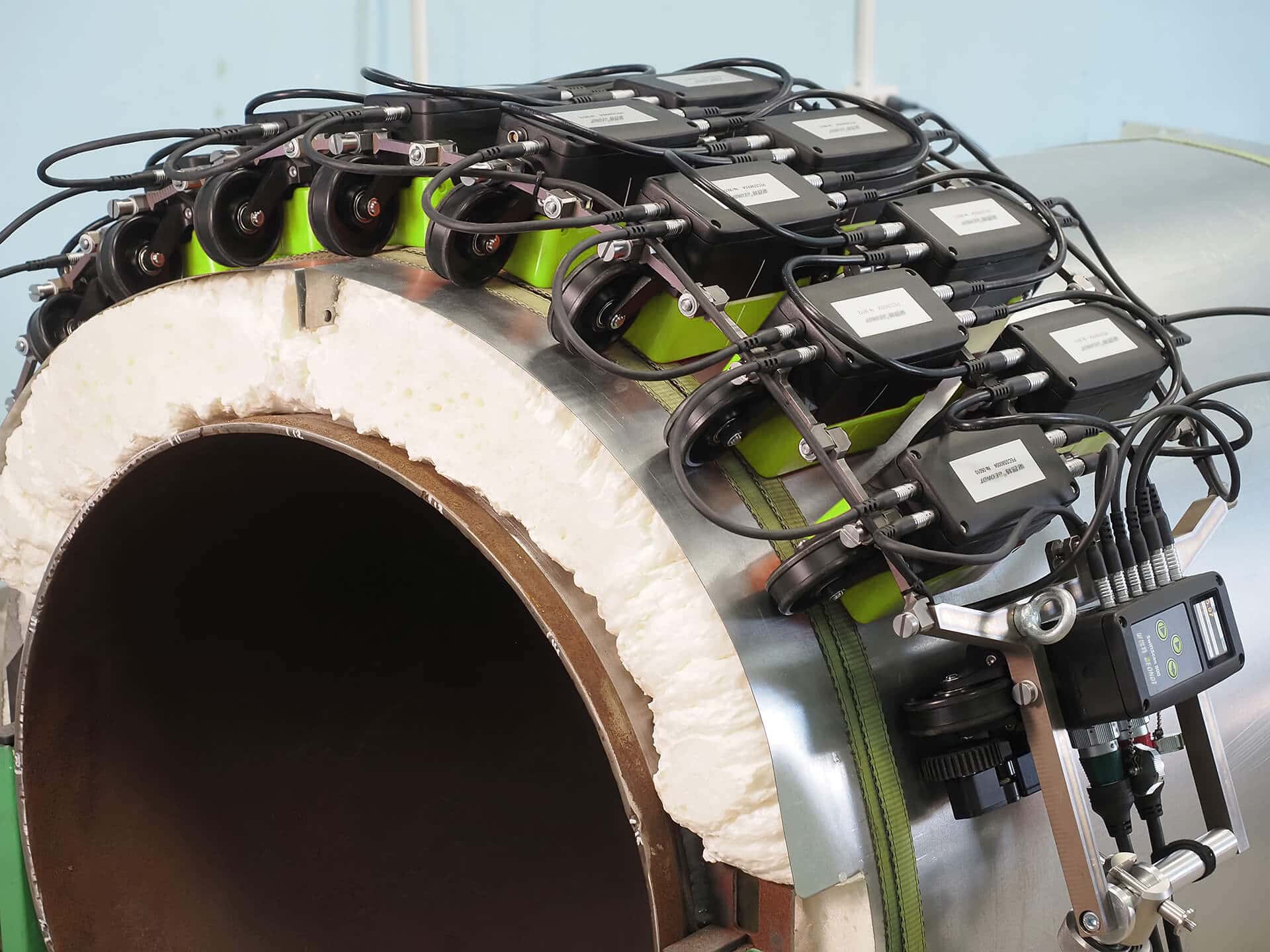

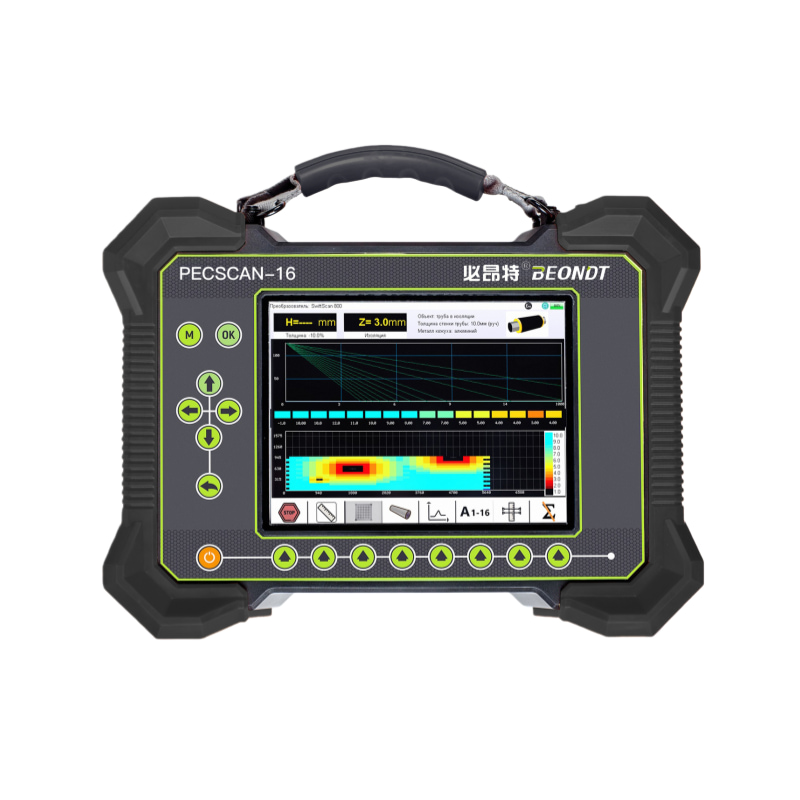

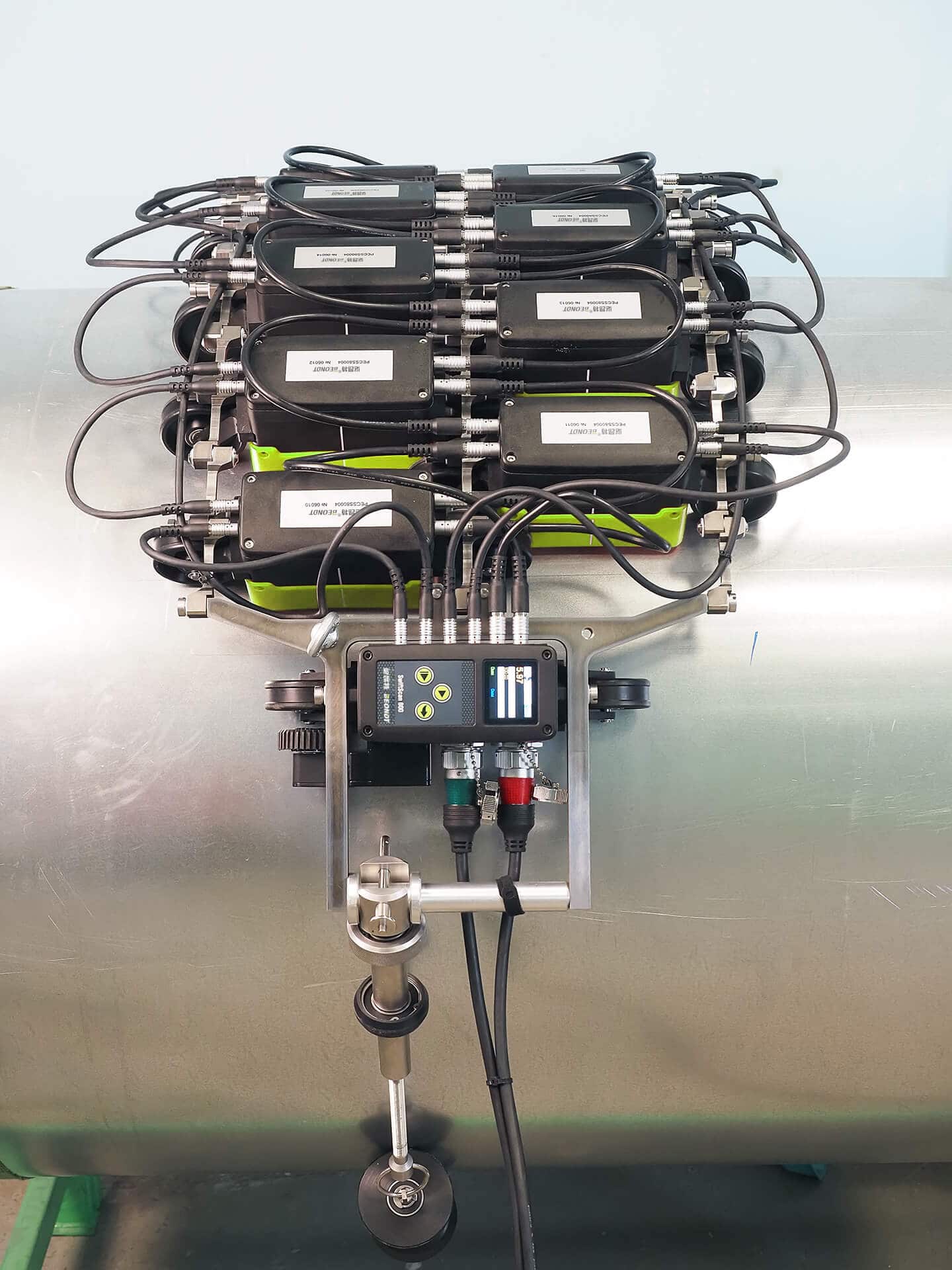

The system operates effectively even under galvanized steel cladding. It supports connection of up to 16 pulsed eddy current probes for simultaneous scanning, with flexible configuration options for fewer probes when needed. The device and sensors are housed in impact-resistant plastic casings with rubber protective padding. The display and main unit are protected by tempered explosion-proof glass.
Technical Specifications
| Parameter | Specification |
| Measurable Thickness Range for Steel (depends on insulation thickness) | 0–35 mm |
| Average Thickness Measurement Error | ≤10% |
| Insulation Thickness Range | 0–300 mm |
| Minimum Pipe Diameter for Detection | ≥15 mm |
| Scanning Speed | ≤80 mm/s (≤4.8 m/min) |
| Temperature Range of Inspected Metal | -200°C to +600°C |
| Surface Temperature at Sensor Contact Point | -20°C to +60°C |
| Operating Ambient Temperature Range | -20°C to +50°C |
| Battery Life (without charging) | 8 hrs |
| Cable Length from Sensor Array to Device (integrated with control module) | 5 m |
| Device Dimensions | 335 × 250 × 110 mm |
| Device Weight | 4.2 kg |
Why choose BEONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
